Shaft Machining: Types, Tolerances, and CNC Turning Process
Drive shafts, motor shafts, spindles, pins — rotational parts that carry torque and hold bearings are the core business of CNC turning. This guide covers the common shaft types, the tolerances that actually matter on a shaft drawing, material choices, and how the turning process produces them.
IsoCNC Engineering Team
CNC Machining & DFM Engineers · Updated · 15 min read
On this page
Quick Answer

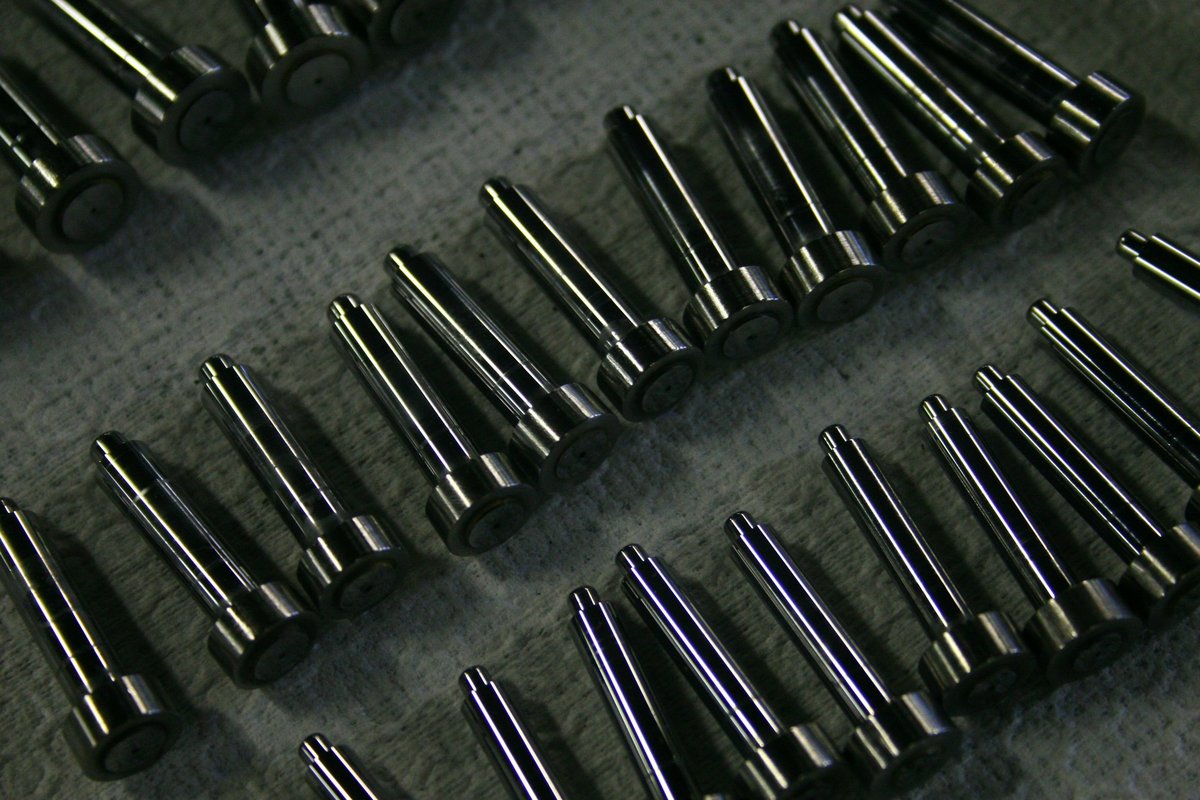

Shaft machining is the CNC production of rotational components — drive shafts, motor shafts, spindles, pins — that transmit torque and locate bearings and gears. CNC turning does most of the work: bar stock rotates against single-point tools that cut every diameter, shoulder, groove, and thread. The tolerances that define a good shaft are journal fits (h6/h7 per ISO 286), runout and concentricity between diameters, and surface finish on bearing seats. Grinding after turning enters the chain when hardness exceeds roughly 45 HRC, when fits tighten past what turning holds, or when finishes drop into the Ra 0.2–0.4 µm range. IsoCNC machines small to medium shafts on 2-axis CNC lathes and live-tooling turning centers, with grinding and keyway work coordinated through qualified partner shops.
What Is Shaft Machining?
A shaft is any component whose job happens around an axis of rotation: it transmits torque between a motor and a load, supports gears and pulleys, locates bearings, or converts rotation into linear motion. Shaft machining is the manufacturing discipline built around that geometry — and because a shaft is a body of revolution, the lathe owns the process. Turning produces the diameters, shoulders, tapers, grooves, and threads that define a shaft in a single rotational setup, which is exactly what shaft quality depends on: every feature cut in one clamping shares the same axis by construction.
A typical shaft process chain runs: saw-cut bar stock → rough turning to near-net shape → heat treatment if the drawing calls for hardness or strength → finish turning of all diameters and shoulders → secondary work as specified (cylindrical or centerless grinding of bearing journals, keyways or splines for torque transmission) → inspection. Not every shaft needs every step — a mild-steel conveyor roller may be done off the lathe, while a hardened gearbox shaft touches almost all of them. What separates a capable shaft shop from a general machine shop is knowing which steps a given drawing actually requires, and routing the part accordingly rather than discovering requirements at inspection.
Types of Shafts
Shaft taxonomy matters to buyers for one reason: the type predicts the process route and the cost drivers. A plain solid shaft is commodity turning; a stepped shaft adds tolerance relationships between diameters; a hollow shaft adds boring and wall-thickness control; splines and eccentrics add secondary operations and specialized workholding. Five types cover most OEM drawings.
| Shaft Type | Defining Features | Typical Applications |
|---|---|---|
| Solid shaft | Simple cylindrical bar, full cross-section | Motor shafts, pump shafts, general drive shafts |
| Stepped shaft | Multiple diameters along one axis — shoulders locate bearings, gears, seals | Gearboxes, speed reducers, conveyor drives |
| Hollow shaft | Bored through for weight reduction or pass-through | Machine tool spindles, hydraulic rotary unions |
| Splined shaft | External splines or keyways transmit torque to a mating hub | Power transmission, PTO drives, sliding couplings |
| Eccentric shaft | Journals offset from the main axis to convert rotation into reciprocating motion | Crank mechanisms, presses, vibrating screens |
Most production shafts are stepped shafts in practice — even a simple motor shaft carries at least a bearing seat, a shoulder, and a threaded or keyed end. That is why the tolerancing section below focuses on relationships between diameters rather than on any single dimension. Splined and keyed features, where specified, are torque features rather than geometry: at IsoCNC the turning is done in-house and the keyway or spline cutting is handled with qualified partner shops, inspected as one part.
Critical Tolerances on Machined Shafts
A shaft drawing lives or dies on five callouts. Diameter fits decide whether bearings slide on, press on, or rattle. Runout and concentricity decide whether the assembly spins true. Surface finish decides bearing and seal life. Keyway tolerances decide whether torque transmits without play. Getting these right costs money only where they are needed — the discipline is restricting tight callouts to functional features, a theme our CNC machining tolerances guide develops in full.
| Feature | Typical Callout | Why It Matters |
|---|---|---|
| Bearing journal diameter | h6 or h7 per ISO 286 — e.g. Ø30 h7 = 0/−21 µm, h6 = 0/−13 µm | Sets the running or transition fit with the bearing inner ring; see shaft fits |
| Runout (TIR) | Circular or total runout referenced to the shaft datum axis | Controls wobble of journals and mounted components; details in our runout tolerance guide |
| Concentricity / coaxiality | Coaxiality between bearing seats, gear seats, and the datum axis | Keeps every functional diameter rotating about the same axis — the core of GD&T control on shafts |
| Surface finish on journals | Turned Ra 1.6–3.2 µm; fine turning ~0.8 µm; ground journals 0.2–0.4 µm | Bearing life and seal wear track surface finish — see the surface finish guide |
| Keyway width and depth | Keyed fits per standard keyseat dimensions | The key carries the torque; width tolerance decides the fit in the hub — cut as a partner process and inspected with the shaft |
Two practical notes from the quoting side. First, fit designations beat plus-minus tolerances on bearing journals: writing Ø30 h7 tells any shop the ISO 286 band (0/−21 µm at that size) unambiguously, while a custom ± tolerance invites questions. Second, runout only means something against a datum — on shafts the datum is almost always the axis established by the bearing journals, and our runout guide explains how the callout reads. IsoCNC quotes shafts at a standard ±0.13 mm (±0.005 in), with precision features to ±0.025 mm (±0.001 in) quoted against the drawing.
Materials Commonly Used for Shafts
Shaft material selection is a three-way trade: strength for the torque and bending loads, hardness for the journals that bearings and seals ride on, and machinability for the cycle time that sets the piece price. Four families cover most drawings, and the choice interacts with process — harder, stronger materials push finishing work toward grinding, so material and heat-treat state should appear on the drawing together.
| Material | Key Properties | Typical Shaft Applications |
|---|---|---|
| AISI 1045 carbon steel | Tensile 565–700 MPa; responds to induction hardening of journals | The default general-machinery shaft: drives, axles, studs |
| AISI 4140 alloy steel | ~655 MPa annealed; 850–1000 MPa quenched & tempered | Loaded shafts: gearboxes, spindles, high-torque drive lines |
| 303 / 316 stainless steel | Corrosion resistance; 303 machines freely, 316 resists chlorides | Food, marine, medical, and pump shafts |
| 6061 aluminum | Light, corrosion-resistant, easy to machine | Low-load shafts, rollers, prototype drive components |
| C360 brass | The machinability benchmark (~100%) | Small instrument shafts, worm gears, decorative spindles |
The common failure mode we see on incoming drawings is under-specification: "steel" with a ground-bearing fit, or 4140 with no heat-treat callout. A shaft material only delivers its published properties in a defined condition — 4140 annealed (~655 MPa tensile) and 4140 quenched-and-tempered (850–1000 MPa) are effectively different materials at the spindle and in service. Name the grade, the standard, and the condition, and any capable shop — including our China CNC machining operation — quotes without a clarification round.
CNC Turning Process for Shafts
Workholding follows the shaft geometry. Short, stiff shafts run in a three-jaw chuck off bar stock. Longer work adds a tailstock center, and genuinely long shafts run between centers with a drive dog — the classic setup that keeps the whole length concentric to the same axis. Slender shafts that would deflect under cutting forces get steady-rest or follow-rest support, and long slender shafts are routed appropriately — thin parts many diameters long belong on Swiss-type machines where a guide bushing supports the bar at the cut, as our Swiss machining guide explains.
The cut sequence is roughing then finishing, with stock left deliberately on any journal the drawing sends to grinding. Process routing depends on features: plain cylindrical shafts run on 2-axis CNC lathes, while shafts carrying milled flats, cross-holes, or back-side features go to turning centers with live tooling and a sub-spindle, completing both ends without a re-chuck. Where the line between turning and milling sits for a given part is a question our milling vs turning comparison answers in detail; the short version is that the body of revolution goes to the lathe and everything prismatic goes to the mill. Our CNC turning services cover both machine classes under one quote.
Shaft Machining vs Grinding: Which Finishes the Journal?
Turning and grinding are complements, not competitors. Turning removes bulk material fast and establishes every diameter in one setup; grinding removes the last few hundredths of a millimetre slowly, with abrasive accuracy turning cannot match. Industry-typical CNC turning holds ±0.01–0.05 mm on diameters and finishes around Ra 1.6–3.2 µm, with fine turning reaching roughly 0.8 µm. Cylindrical grinding steps down from there — tighter bands, and finishes in the Ra 0.2–0.4 µm range on fine passes.
Three triggers route a journal to the grinder. Hardness: past roughly 45 HRC, conventional carbide turning stops being economical, and grinding (or CBN hard turning on suitable machines) becomes the standard finishing route — heat-treated 4140 shafts typically finish this way. Tolerance: press-fit bearing seats and similarly tight fits sit below what turning holds reliably. Finish: seal journals and high-speed bearing seats calling for ground-range surfaces. At IsoCNC, grinding — OD and centerless — is handled with qualified partner shops and coordinated inside the same order and inspection plan, so the turned shaft and the ground journal arrive as one verified part. Our CNC grinding guide covers what the process adds and what it costs.
Quality Inspection for Shaft Parts
Shaft inspection is built around the axis. Diameters are verified with outside micrometers — and bore gauges on hollow shafts — against the fit callouts. Runout gets the classic shop-floor check: the shaft sits in a V-block or between centers, a dial indicator reads each journal through a full rotation, and the total indicator reading answers the drawing directly. Geometric relationships across a stepped shaft — concentricity, datum structure, position of cross-holes and keyways — go to the CMM, which reads every feature in one coordinate system. Journal finishes are confirmed with a roughness tester.
For OEM batches, the discipline that protects the buyer is first-article inspection: the first shaft off the process gets a full dimensional report against every drawing callout before the batch runs, which locks the process and catches routing mistakes while they are still cheap. Our first-article inspection guide shows what a proper FAI report contains. At IsoCNC the same metrology stack — CMM, bore gauges, roughness measurement in a dedicated inspection room — backs every order, and an engineer reviews each RFQ, typically within 1–2 business days, flagging tolerance or routing risks before cutting starts.
FAQ: Shaft Machining
What is shaft machining?
Shaft machining is the production of rotational components — drive shafts, motor shafts, spindles, pins, axles — that transmit torque, support rotating parts, or locate bearings and gears. Because a shaft is fundamentally a body of revolution, CNC turning does most of the work: the bar rotates against single-point tools that cut the diameters, shoulders, grooves, and threads. Secondary processes join the chain as the drawing requires: heat treatment for strength or journal hardness, cylindrical grinding for the tightest fits and finest finishes, and keyway or spline cutting for torque transmission. The defining quality question on any shaft is not one dimension but the relationship between all of them — every functional diameter must rotate about the same axis, which is why runout and concentricity callouts dominate shaft drawings.
What tolerances can CNC turning hold on a shaft?
Industry-typical CNC turning holds ±0.01–0.05 mm on diameters without special effort — roughly the IT7–IT8 band (for reference, ISO 286 gives h7 on a Ø30 shaft as 0/−21 µm and h6 as 0/−13 µm). Runout between journals turned in one setup is controlled by the machine and workholding rather than by operator skill, which is why single-setup machining matters so much on shafts. At IsoCNC we quote conservatively: standard general tolerance ±0.13 mm (±0.005 in), precision features to ±0.025 mm (±0.001 in) against the drawing. Anything tighter — ground bearing fits, for example — is routed to grinding with our qualified partner shops and stated clearly at quote stage.
What is the difference between a stepped shaft and a splined shaft?
A stepped shaft changes diameter along its length — the shoulders between steps locate bearings, gears, and seals axially, and each diameter carries its own tolerance and finish requirements. It describes geometry. A splined shaft describes a torque-transmission feature: axial ridges (splines) or a keyway cut into one diameter that lock a hub rotationally to the shaft while often allowing axial sliding. Many real shafts are both — a stepped shaft with a splined or keyed section at one end. From a machining standpoint the stepped geometry is pure turning, while splines and keyways are a secondary operation; at IsoCNC those are cut by qualified partner shops and inspected together with the turned shaft.
When does a shaft need grinding after turning?
Three triggers send a turned shaft to the grinder. Hardness: once a shaft is hardened past roughly 45 HRC, conventional carbide turning stops being economical and grinding (or CBN hard turning) becomes the standard finishing route. Tolerance: when a journal fit is tighter than turning reliably holds — a press-fit bearing seat, for instance. Finish: when the drawing calls for surfaces in the Ra 0.2–0.4 µm range, typical for seal journals, where fine turning tops out around 0.8 µm. Turning still does the heavy lifting first; the grinder removes the last few hundredths of a millimetre from stock left deliberately on the journal. IsoCNC coordinates grinding with qualified partner shops as part of the same order, so the shaft arrives complete.
What materials are best for precision shafts?
Match the material to the load and the environment. AISI 1045 carbon steel is the default for general machinery shafts — tensile strength in the 565–700 MPa range, and journals can be induction-hardened where bearings or seals ride. AISI 4140 alloy steel steps up to roughly 850–1000 MPa quenched and tempered for high-torque drive lines and spindles. Stainless grades (303 for machinability, 316 for corrosion resistance) cover food, marine, and medical duty. 6061 aluminum suits lightweight, low-load shafts and rollers. C360 brass — the machinability benchmark itself — handles small instrument shafts. For precision work the material choice interacts with process: harder and stronger materials push finishing toward grinding, so the drawing should name the material and the heat-treat state together.
How do you inspect shaft runout?
The shop-floor method is a V-block and a dial indicator: the shaft rests in the block (or between centers for the most faithful reading), the indicator contacts the journal being checked, and the total indicated runout — TIR — is the needle sweep over one full rotation. That measures what the drawing's runout callout actually controls. For full geometric verification — concentricity, position of cross-holes, datum structure across a stepped shaft — a CMM reads the same features in one coordinate system. Diameters are verified with micrometers and bore gauges, finishes with a roughness tester. At IsoCNC this metrology stack (CMM, bore gauges, roughness measurement) backs every shaft order, and first-article inspection locks the process before a batch runs.
